Introduction

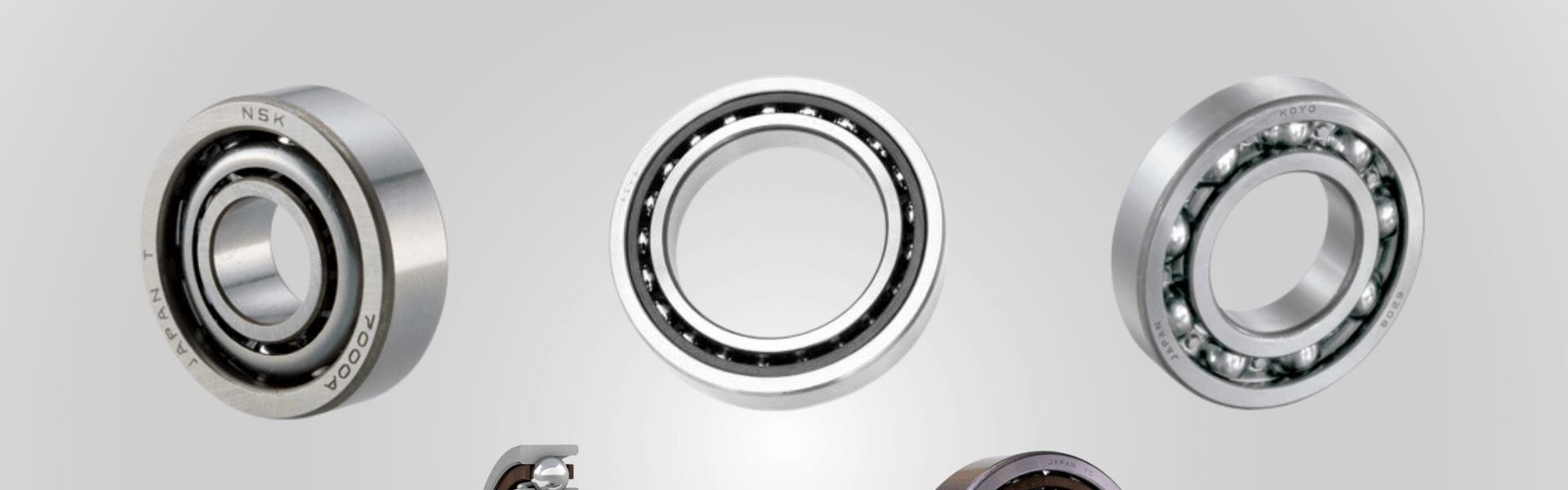

Miniature precision single row deep groove ball bearings are designed for applications where space is extremely limited but precision and reliability are critical. Despite their small size, these bearings deliver high rotational accuracy, low friction, and stable performance in high-speed micro-mechanical systems.
They are widely used in precision instruments, medical devices, robotics, and high-tech electronics.
Design and Structure
A miniature deep groove ball bearing typically includes:
- Miniature inner ring
- Miniature outer ring
- Precision steel or ceramic balls
- High-accuracy cage (retainer)
The deep groove geometry allows the bearing to support both radial and limited axial loads, while maintaining extremely smooth rotation even at very high speeds.
Key Features and Advantages
- Ultra-compact size
Ideal for space-constrained applications. - High precision
Manufactured with tight tolerances for accurate motion control. - Low friction performance
Enables smooth operation in sensitive systems. - High-speed capability
Suitable for micro motors and high-RPM devices. - Long service life
Reduced wear due to precision engineering and quality materials.
Types and Variants
Miniature precision bearings are available in several forms:
- Open type – for controlled environments
- Shielded (ZZ) – protection against dust and particles
- Sealed (2RS) – enhanced contamination resistance
- Stainless steel variants – for corrosion-prone environments
- Hybrid ceramic versions – for ultra-high speed and reduced friction
Applications
These bearings are essential in many advanced technologies:
- Medical instruments and dental tools
- Robotics and automation systems
- Optical and measuring devices
- Drones and miniature motors
- Hard drives and precision electronics
- Aerospace micro-mechanisms
Materials and Manufacturing
Common materials include:
- Chrome steel (GCr15) – standard high-precision material
- Stainless steel – corrosion resistance
- Ceramic (Si3N4 balls) – lightweight and high-speed performance
Manufacturing involves ultra-precision grinding and polishing to ensure minimal vibration and maximum accuracy.
Installation and Maintenance Tips
- Handle with care due to small size and sensitivity
- Avoid contamination during installation
- Use appropriate tools for micro-assembly
- Ensure proper lubrication (often pre-lubricated)
- Store in clean, dry environments
Conclusion
Miniature precision single row deep groove ball bearings are critical components in modern high-tech systems. Their compact size, precision engineering, and reliable performance make them indispensable in industries where accuracy and space efficiency are essential.
